麦克风

ADC 指模/数转换器或者模数转换器。是指将连续变化的模拟信号转换为离散的数字信号的器件。
我们这里需要使用 ADC 功能采集麦克风数据(原始 PCM 数据)，发送给服务端。

LN882H对ADC的支持

支持 6 通道轮询采样
12bit 分辨率
单次和连续转换模式
支持 DMA
支持转换完成中断

注：如果要使用 ADC 的 DMA，除了要使能 ADC_DMA_EN，还要配置 ADC 的转换中断使能（不用配置 NVIC），这样才能触发 DMA采集数据

引脚和ADC通道对应关系
GPIOA0 -> ADC2
GPIOA1 -> ADC3
GPIOA4 -> ADC4
GPIOB3 -> ADC5
GPIOB4 -> ADC6
GPIOB5 -> ADC7

电路设计

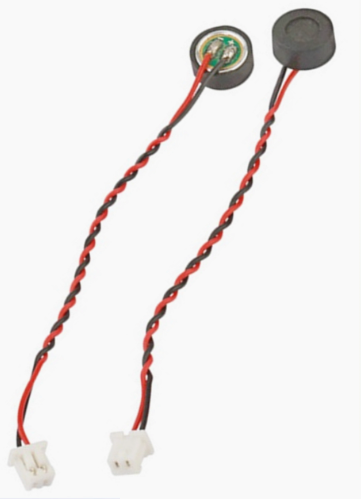

实体样式
咪头式麦克风

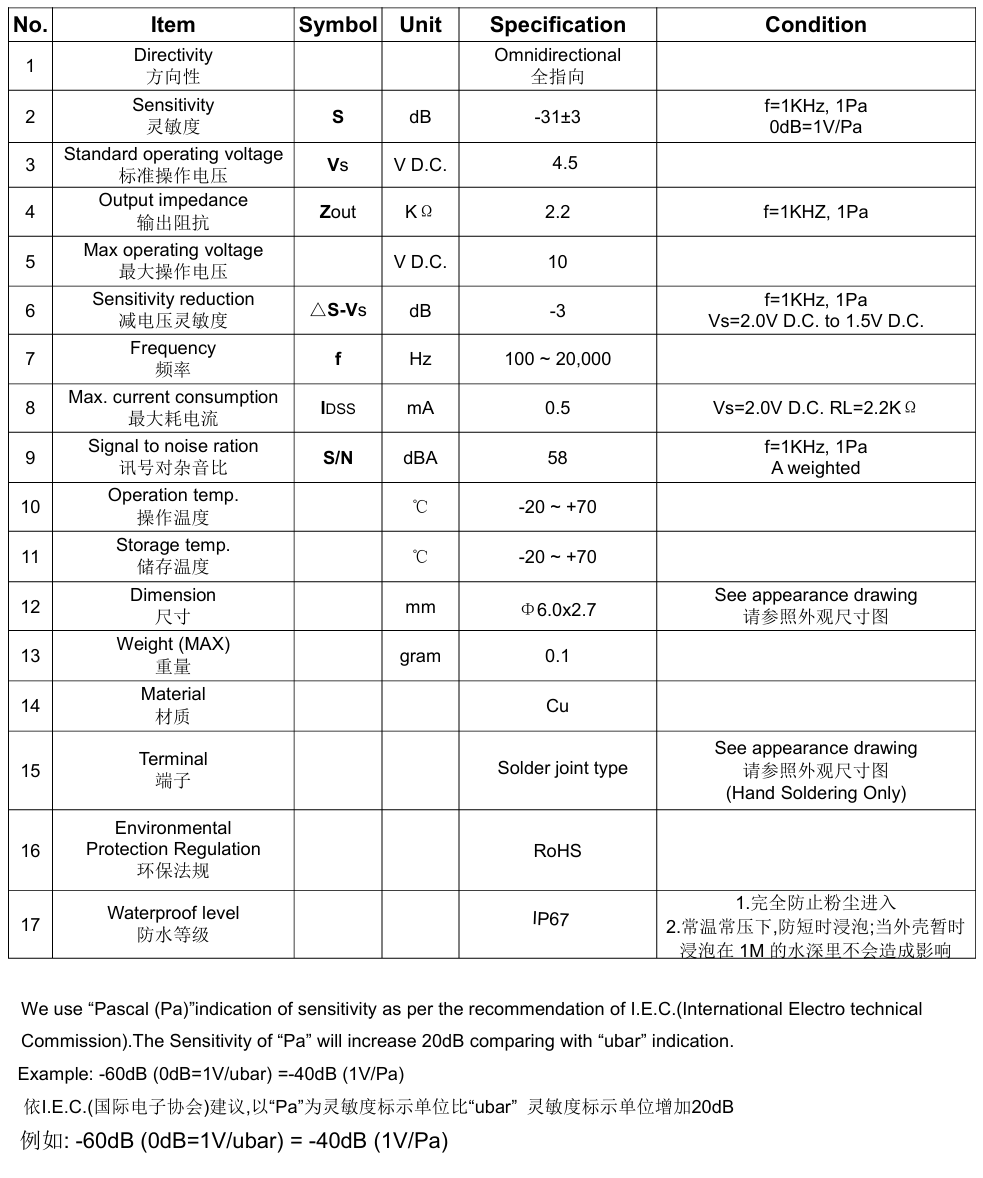

规格说明

参数说明：

指向性：全指向(说明麦克风能均匀接收各个方向的声音，适用于语音采集)
灵敏度：-31±3(麦克风将声压转换为电信号的能力)

• 0 dB = 1V/Pa，即 1 帕斯卡（Pa）的声压下，麦克风输出 1V 电压。

• 规格中参数是 -31 ±3 dB，意味着灵敏度范围在 -34 dB 到 -28 dB 之间。

• 那么根据公式：

• 灵敏度范围：-34 dB 到 -28 dB。

  最差情况（-34 dB）：$ V_{\text{out}} = 10^{(-34/20)} \times 1V \approx 0.01995V = 19.95 , \text{mV} $。

  最佳情况（-28 dB）：$ V_{\text{out}} = 10^{(-28/20)} \times 1V \approx 0.03981V = 39.81 , \text{mV} $。

• 我们可以将参数 -31dB 带入：可以得出有效值为 28.2mv，峰值约为 39.9mV

标准工作电压：4.5V(范围是 2v-10V，4.5V 最佳)
输出阻抗：2.2KΩ(麦克风输出信号的内阻，影响与后续电路的匹配)
频率：100Hz-20000Hz(麦克风能有效响应的音频频率范围)
最大耗电流：0.5mA(麦克风在工作时的最大电流)
…

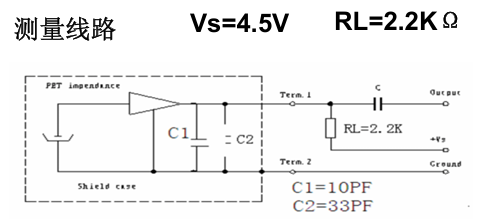

最小测试电路

为什么不可以直接将咪头麦克风接入 ADC 引脚而需要外置电路？

根据规格说明中的解释我们可以得出如下麦克风特性：
咪头麦克风（驻极体麦克风）输出的是交流音频信号，以直流偏置电压为中心；而ADC只能采集正电压（0V到3.3V，假设 ln882H 的参考电压是3.3V）。
直流偏置：根据公式，假设负载电阻 R_L = 2.2kΩ，电流 0.5 mA，咪头两端压降约为 0.5 x 10^-3 x 2200 = 1.1 V。若供电3.3V，输出引脚（Term 1）的直流电平约为 3.3 - 1.1 = 2.2。(驻极体麦克风内部有一个FET（场效应管），它需要一个偏置电流来工作。)
交流部分：±39.9 mV（1Pa声压），总输出范围约为 2.2V ± 39.9 mV（2.1601V 到 2.2399V）。

LN882H ADC 引脚特性：
输入范围：0V 至 3.3V（单极输入，常见值）。

分辨率：LN882H ADC 12 位(2¹² = 4096），电压分辨率约为$$ \frac{3.3}{4096} \approx 0.805\text{mV} $$

这两个特性说明了两点：

第一、引脚输入电压不能超过 3.3V，因为它最大只支持 3.3V
第二、咪头麦克风的电压变化大概在 0.805mV 左右太微弱了，ADC 可能无法精确识别
第三、麦克风需要的电压为 4.5V，ADC 引脚最大也就 3.3V

为了解决这些问题：我们就需要外置电路，对麦克风提供 3.3V 的电压，并将电压变大让 ADC 可以正常采集这些变化；

实现思路

使用 ADC 采集音频数据（原始 PCM 数据）。
注意因为直流偏置范围只有(2.1601V 到 2.2399V)，所以我们可以计算出 ADC 步长为:

那么信号范围 $ 2.1601V $ 到 $ 2.2399V $ 对应的ADC值

信号变化范围为 2683 到 2783，总共约100个量化级别。所以我们需要线性映射对应的数值。
将采集到的数据转为 16 位的 PCM，存储到 PCMBuffer（环形缓冲区)

使用 G.726 编码（将 PCM 数据压缩，降低带宽需求）。这个后续实现
通过 Socket 发送 G.726 编码后的数据给服务端。
服务端解码 G.726，还原成 PCM，再进行后续处理（播放/存储/语音识别等）。

FFT

通过 ADC 采样麦克风数据，但采样结果受到干扰。测试发现 ADC 引脚本身存在大概 0.0几V 的噪声波动，我当前使用的是咪头麦克风输出信号幅度较低，导致采样信号淹没在噪声中，无法正确获取麦克风数据。这里就可使用 FFT 算法

软件实现

思路：通过 ADC 读取音频数据，将其转为 PCM 数据流，通过 socket 发送给大模型进行处理

#include "hal/hal_clock.h"
#include "hal/hal_common.h"
#include "hal/hal_gpio.h"
#include "hal/hal_adc.h"
#include "hal/hal_timer.h"
#include "ln_show_reg.h"
#include "ln_test_common.h"
#include "utils/debug/log.h"
#include <string.h>

#include "ln_drv_timer.h"
#include "ln_drv_adc.h"

#define ADC_CHANNEL   ADC_CH5    // 使用GPIOB3作为ADC输入
#define SAMPLE_RATE   40000      // 目标采样率 40kHz
#define BUFFER_SIZE   1024       // PCM缓冲区大小

// PCM缓冲区
int16_t pcmBuffer[BUFFER_SIZE];
volatile uint16_t bufferIndex = 0;

// 定时器中断回调
void timer_callback(void){
    // 直接读取最新ADC值 (0-4095，非阻塞)
    uint16_t adcValue = adc_get_data(ADC_CHANNEL);
	LOG(LOG_LVL_INFO, "PCM ...\n");
    // 转换为16位PCM (-32768至32767)
    int16_t pcmValue = (int16_t)((adcValue - 2733) * (29490.0 / 50.0)); // 映射到90%满量程
	if (pcmValue > 32767) pcmValue = 32767;  // 防止溢出
	if (pcmValue < -32768) pcmValue = -32768;

    // 存储到缓冲区
    if (bufferIndex < BUFFER_SIZE){
        pcmBuffer[bufferIndex++] = pcmValue;
    }
    else{
        // 缓冲区满，处理数据（例如发送或重置）
        bufferIndex = 0;
        LOG(LOG_LVL_INFO, "PCM Buffer Full, Processing...\n");
        // 可添加数据传输逻辑（如串口发送）
    }
}

int main(int argc, char *argv[]){
    /****************** 1. 系统初始化 ***********************/
    SetSysClock();
    log_init();
    LOG(LOG_LVL_INFO, "LN882H init for audio capture!\n");
    ln_show_reg_init();

    /****************** 2. 外设配置 ***********************/
    // 初始化ADC
    adc_init(ADC_CHANNEL);  // 配置ADC_CH5 (GPIOB3)为连续模式
    adc_start();            // 开始ADC转换

    // 初始化定时器 (使用Timer0，40kHz中断)
    uint32_t timer_us = 1000000 / SAMPLE_RATE; // 40kHz -> 25 us
    timer_init(TIMER_CH_0, timer_us, timer_callback); // 初始化Timer0，25us中断

    /****************** 3. 采集循环 ***********************/
    while (1){
        ln_delay_ms(100);  // 避免CPU过载
    }

    return 0;
}

123

// CRC16
static int calculate_crc16(const uint8_t *data, uint16_t length) {
    uint16_t crc = 0x0000;
    for (uint16_t i = 0; i < length; i++) {
        crc ^= (uint16_t)data[i] << 8;
        for (uint8_t j = 0; j < 8; j++) {
            if (crc & 0x8000) crc = (crc << 1) ^ 0x8005; else crc <<= 1;
        }
    }
    return crc;
}

// 格式校验
static int validate_format(uint8_t *buffer, uint32_t pos) {
    if (pos < 7) return 1;
    uint16_t data_length = (buffer[2] << 8) | buffer[3];
    if (data_length > TEMP_BUFFER_SIZE - 7) {
        LOG(LOG_LVL_ERROR, "Data length too big: %u\n", data_length);
        return -1;
    }
    uint16_t expected_pos = 4 + data_length + 2 + 1;
    if (pos < expected_pos) return 1;
    if (buffer[0] != 0xAA || buffer[expected_pos - 1] != 0xFF || pos != expected_pos) {
        LOG(LOG_LVL_ERROR, "Data format error: head=0x%02X, tail=0x%02X, pos=%u, expected=%u\n",
            buffer[0], buffer[pos - 1], pos, expected_pos);
        return -1;
    }
    return 2;
}

static void send_ACK(int sockfd, uint8_t response_type) {
    uint8_t response[3] = {0xAA, response_type, 0xFF};
    int attempts = 5;
    int sent;
    while (attempts-- > 0) {
        sent = lwip_send(sockfd, response, sizeof(response), 0);
        if (sent < 0) {
            LOG(LOG_LVL_ERROR, "send_ACK error, errno=%d, attempts left=%d\n", errno, attempts);
            if (errno == EAGAIN || errno == ETIMEDOUT) {
                OS_MsDelay(50);
                continue;
            }
            break;
        } else if (sent != sizeof(response)) {
            LOG(LOG_LVL_ERROR, "Partial ACK send: expected 3, sent %d\n", sent);
            break;
        } else {
            switch(response_type){
                case 0xAA: LOG(LOG_LVL_INFO, "Sent %s\n", "ACK_0xAA");break;
                case 0xEE: LOG(LOG_LVL_INFO, "Sent %s\n", "ACK_0xEE");break;
                case 0x02: LOG(LOG_LVL_INFO, "Sent %s\n", "ACK_0x02");break;
                case 0x01: LOG(LOG_LVL_INFO, "Sent %s\n", "ACK_0x01");break;
            }
            return;
        }
    }
    LOG(LOG_LVL_ERROR, "Failed to send ACK after retries\n");
}

static int get_free_space(uint32_t write_pos, uint32_t read_pos, uint32_t buffer_size) {
    if ((write_pos + 1) % buffer_size == read_pos) {
        return 0;
    }
    if (write_pos >= read_pos) {
        return buffer_size - (write_pos - read_pos) - 1;
    } else {
        return read_pos - write_pos - 1;
    }
}

static int read_circular_buffer(void *buffer, uint32_t *read_pos, uint32_t *write_pos, uint32_t buffer_size, void *data, uint16_t data_length, size_t element_size) {
    uint32_t available = (*write_pos >= *read_pos) ? (*write_pos - *read_pos) : (buffer_size - *read_pos + *write_pos);
    if (available < data_length) {
        return -1;
    }
    uint32_t space_to_end = buffer_size - *read_pos;
    if (space_to_end >= data_length) {
        memcpy(data, (uint8_t *)buffer + (*read_pos * element_size), data_length * element_size);
    } else {
        memcpy(data, (uint8_t *)buffer + (*read_pos * element_size), space_to_end * element_size);
        memcpy((uint8_t *)data + (space_to_end * element_size), buffer, (data_length - space_to_end) * element_size);
    }
    *read_pos = (*read_pos + data_length) % buffer_size;
    return 0;
}

// 向环形缓冲区写入数据
// buffer：环形缓冲区的起始地址（通用指针）。
// write_pos：指向写指针的指针，表示当前写入位置。
// read_pos：指向读指针的指针，表示当前读取位置。
// buffer_size：缓冲区总大小（元素个数）。
// data：要写入的数据的起始地址（通用指针）。
// data_length：要写入的元素个数。
// element_size：每个元素的大小（字节数，例如 sizeof(int16_t) 为 2）。
// 0：写入成功。
// -1：因缓冲区空间不足超时失败
static int write_circular_buffer(void *buffer, uint32_t *write_pos, uint32_t *read_pos,
                                 uint32_t buffer_size, void *data, uint16_t data_length,
                                 size_t element_size) {
    // 计算可用空间
    uint32_t free_space = get_free_space(*write_pos, *read_pos, buffer_size);
    uint32_t wait_start = OS_GetTicks(); // 获取当前系统时间（tick 计数），用于超时检测

    // 空间不够，等待缓冲区空间
    while (free_space < data_length) {
        LOG(LOG_LVL_INFO, "Buffer full, data_length=%u, free_space=%u\n", data_length, free_space);
        vTaskDelay(pdMS_TO_TICKS(10));
        free_space = get_free_space(*write_pos, *read_pos, buffer_size);
        LOG(LOG_LVL_INFO, "write_circular_buffer write=%u, read=%u\n", *write_pos, *read_pos);
        if (OS_GetTicks() - wait_start > pdMS_TO_TICKS(5000)) {
            LOG(LOG_LVL_ERROR, "Timeout waiting for buffer space after 5s\n");
            return -1; // 返回 -1 表示因空间不足超时
        }
    }

    // 写入数据
    uint32_t space_to_end = buffer_size - *write_pos;
    if (space_to_end >= data_length) {
        memcpy((uint8_t *)buffer + (*write_pos * element_size), data, data_length * element_size);
    } else {
        memcpy((uint8_t *)buffer + (*write_pos * element_size), data, space_to_end * element_size);
        memcpy(buffer, (uint8_t *)data + (space_to_end * element_size),
               (data_length - space_to_end) * element_size);
    }
    *write_pos = (*write_pos + data_length) % buffer_size;
    return 0; // 写入成功
}

static int receive_sum_size(int sockfd, uint32_t *sum_size) {
    uint8_t size_buffer[4];
    int size_pos = 0;
    char buffer[4];
    int len = lwip_recv(sockfd, buffer, sizeof(buffer), 0);
    if (len < 0) {
        // 处理非阻塞临时错误
        if (errno == EAGAIN || errno == EWOULDBLOCK) {
            return 0;
        }
        return -1;
    } else if (len > 0) {
        LOG(LOG_LVL_INFO, "receive_sum_size len: %d\n", len);
        int i = 0;
        while (i < len && size_pos < 4) {
            size_buffer[size_pos] = buffer[i];
            size_pos++;
            i++;
        }
        if (size_pos == 4) {
            *sum_size = ((uint32_t)size_buffer[0] << 24) | ((uint32_t)size_buffer[1] << 16) |
                        ((uint32_t)size_buffer[2] << 8) | (uint32_t)size_buffer[3];
            LOG(LOG_LVL_INFO, "Received total size: %u bytes\n", *sum_size);
            send_ACK(sockfd, 0xAA);
            return 1;
        }
    }
    return 0;
}

// 检查结束信号
static int check_end_signal(uint8_t *buffer, uint32_t *pos, int sockfd) {
    if (*pos < 3) {
        return 0; // 数据不足以包含结束信号，直接返回
    }

    for (uint32_t i = 0; i <= *pos - 3; i++) {
        if (buffer[i] == 0xAA && buffer[i + 1] == 0x02 && buffer[i + 2] == 0xFF) {
            LOG(LOG_LVL_INFO, "recv end pos=%u\n", i);
            uint32_t remaining = *pos - (i + 3);

            // 检查结束信号后是否紧跟开始信号
            if (remaining >= 3 && buffer[i + 3] == 0xAA && buffer[i + 4] == 0x01 && buffer[i + 5] == 0xFF) {
                LOG(LOG_LVL_INFO, "Start signal follows end signal, remaining=%u\n", remaining);
                memmove(buffer, &buffer[i + 3], remaining);
                *pos = remaining;
                send_ACK(sockfd, 0xAA);
                return 1; // 表示结束信号后紧跟开始信号
            }

            // 处理剩余数据
            if (remaining > 0) {
                LOG(LOG_LVL_INFO, "Moving %u bytes after end signal\n", remaining);
                memmove(buffer, &buffer[i + 3], remaining);
                *pos = remaining;
            } else {
                *pos = 0;
            }

            send_ACK(sockfd, 0xAA);
            return -3; // 仅检测到结束信号
        }
    }
    return 0; // 未检测到结束信号
}

// 处理数据包
// buffer：包含完整数据包的缓冲区。
// pos：缓冲区中数据包的长度（字节数）。
// sockfd：socket 文件描述符，用于发送 ACK。
// data_type：指向数据类型变量的指针，存储解析出的类型（0x11 或 0x12）。
// total_written：指向已写入数据总量的指针（样本数或字节数）。
// 0：成功处理数据包或仅接收类型信息。
// -1：CRC 校验失败。
static int process_packet(uint8_t *buffer, uint32_t pos, int sockfd, uint8_t *data_type, uint32_t *total_written) {
    uint16_t data_length = (buffer[2] << 8) | buffer[3]; // 数据长度
    *data_type = buffer[1]; // 数据包类型
    uint8_t *data = &buffer[4]; // 指向数据开头
    uint16_t recv_crc = (buffer[4 + data_length] << 8) | buffer[5 + data_length];
    uint16_t calculated_crc = calculate_crc16(data, data_length);

    if (calculated_crc != recv_crc) {
        LOG(LOG_LVL_ERROR, "CRC16 error: received=0x%04X, calculated=0x%04X\n", recv_crc, calculated_crc);
        send_ACK(sockfd, 0xEE);
        return -1;
    }
	// 引导包
    if (data_length == 0 && (*data_type == 0x11 || *data_type == 0x12)) {
        LOG(LOG_LVL_INFO, "recv type : 0x%02X\n", *data_type);
        send_ACK(sockfd, 0xAA);
        return 0;
    }

    taskENTER_CRITICAL();
    if (*data_type == 0x12) { // 音频数据
        if (data_length % 2 != 0) {
            LOG(LOG_LVL_ERROR, "Audio data length not two: %u\n", data_length);
            send_ACK(sockfd, 0xEE);
        } else {
            // 转为16位样本
            uint16_t sample_count = data_length / 2;
            int16_t samples[sample_count];
            for (uint16_t i = 0; i < sample_count; i++) {
                samples[i] = (int16_t)((data[i * 2] << 8) | data[i * 2 + 1]);
            }
            int write_result = write_circular_buffer(PCMBuffer_rx, (uint32_t *)&rx_write_pos,
                                                    (uint32_t *)&rx_read_pos, RING_BUFFER_SIZE,
                                                    (uint8_t *)samples, sample_count, sizeof(int16_t));
            if (write_result == 0) {
                *total_written += sample_count;
                send_ACK(sockfd, 0xAA);
                LOG(LOG_LVL_INFO, "CRC match, total_written=%u (0x12)\n", *total_written);
                xSemaphoreGive(rx_data_ready_sem); // 写入成功，增加计数
            } else if (write_result == -1) {
                xSemaphoreGive(rx_data_ready_sem); // 空间不足，通知消费者
                send_ACK(sockfd, 0xEE);
                LOG(LOG_LVL_INFO, "Buffer full, signalled consumer for audio data\n");
            }
        }
    } else if (*data_type == 0x11) { // 打印数据
        int write_result = write_circular_buffer(print_buffer, (uint32_t *)&print_write_pos,
                                                (uint32_t *)&print_read_pos, SUM_BUFFER_SIZE,
                                                data, data_length, sizeof(uint8_t));
        if (write_result == 0) {
            *total_written += data_length;
            send_ACK(sockfd, 0xAA);
            LOG(LOG_LVL_INFO, "CRC match, total_written=%u (bytes)\n", *total_written);
            xSemaphoreGive(print_data_ready_sem); // 写入成功，增加计数
        } else if (write_result == -1) {
            xSemaphoreGive(print_data_ready_sem); // 空间不足，通知消费者
            send_ACK(sockfd, 0xEE);
            LOG(LOG_LVL_INFO, "Buffer full, signalled consumer for print data\n");
        }
    }
    taskEXIT_CRITICAL();
    return 0;
}

static int receive_data(int sockfd, int *has_partial, uint8_t *temp_buffer, uint32_t *temp_pos, uint8_t *data_type, uint32_t *total_written) {
    int len;
    static uint8_t buffer[4096];

    if (*has_partial && *temp_pos > 0) {
        int end_result = check_end_signal(temp_buffer, temp_pos, sockfd);
        if (end_result == -3) {
            *has_partial = 0;
            return -3; // 仅结束信号
        } else if (end_result == 1) {
            *has_partial = 1; // 保留开始信号数据
            return 1;  // 结束信号后紧跟开始信号
        }

        int validation_result = validate_format(temp_buffer, *temp_pos);
        if (validation_result == 2) {
            process_packet(temp_buffer, *temp_pos, sockfd, data_type, total_written);
            *temp_pos = 0;
            *has_partial = 0;
        } else if (validation_result == -1) {
            send_ACK(sockfd, 0xEE);
            *temp_pos = 0;
            *has_partial = 0;
        }
    }

    len = lwip_recv(sockfd, buffer, sizeof(buffer), 0);
    if (len < 0) {
        if (errno == EAGAIN || errno == ETIMEDOUT) {
            OS_MsDelay(100);
            return 0;
        }
        LOG(LOG_LVL_ERROR, "recv_data len < 0: %d\n", errno);
        return -1;
    } else if (len == 0) {
        LOG(LOG_LVL_INFO, "Server closed connection\n");
        return -2;
    }

    int i = 0;
    while (i < len) {
        if (*temp_pos >= TEMP_BUFFER_SIZE) {
            send_ACK(sockfd, 0xEE);
            *temp_pos = 0;
            *has_partial = 0;
            LOG(LOG_LVL_INFO, "temp_pos >= sizeof(temp_buffer)...\n");
            break;
        }

        temp_buffer[*temp_pos] = buffer[i];
        (*temp_pos)++;

        int end_result = check_end_signal(temp_buffer, temp_pos, sockfd);
        if (end_result == -3) {
            *has_partial = 0;
            return -3; // 仅结束信号
        } else if (end_result == 1) {
            *has_partial = 1; // 保留开始信号数据
            return 1;  // 结束信号后紧跟开始信号
        }

        int validation_result = validate_format(temp_buffer, *temp_pos);
        if (validation_result == -1) {
            send_ACK(sockfd, 0xEE);
            *temp_pos = 0;
            *has_partial = 0;
            continue;
        } else if (validation_result == 2) {
            process_packet(temp_buffer, *temp_pos, sockfd, data_type, total_written);
            *temp_pos = 0;
            *has_partial = 0;
            if (i + 1 < len && buffer[i + 1] != 0xAA) {
                LOG(LOG_LVL_INFO, "Discarding invalid data after packet: %02X\n", buffer[i + 1]);
                break;
            }
        }
        i++;
    }

    if (*temp_pos > 0 && temp_buffer[*temp_pos - 1] == 0xAA && validate_format(temp_buffer, *temp_pos) != 2) {
        *has_partial = 1;
        LOG(LOG_LVL_INFO, "package not wanzheng\n");
    }

    return 0;
}

static void socket_task_entry(void *params) {

    LN_UNUSED(params); // 抑制编译器对未使用参数的警告。
    struct sockaddr_in server_addr; // 存储 IP 和端口。
    int timeout_ms = 5000; // 接收超时时间，单位毫秒 5s
    int sockfd = -1; // socket 句柄 -1 未连接
    int has_partial = 0; // 标志位，表示是否有未处理完的部分数据。
    // 临时缓冲区，用于接收数据，初始化为全 0。
    uint8_t temp_buffer[TEMP_BUFFER_SIZE] = {0};
    uint32_t temp_pos = 0; // 临时缓冲区的当前写入位置
    uint8_t data_type = 0; // 接收数据的类型
    uint32_t total_written = 0; // 已写入的总数据量（样本数或字节数）
    State_t state = STATE_IDLE; // 状态机变量，初始状态为空闲
    uint32_t data_sum_size = 0; // 打印数据的总大小
    uint8_t is_get_sum_size = 0; // 标志位，表示是否已获取打印数据的总大小
    // 记录上次接收数据的时间，用于超时检测，静态变量保持任务间的状态。
    static uint32_t last_data_time = 0;

    while (1) {
        // 检查 MUC 是否获取到 IP 地址（WiFi 是否连接）
        if (!netdev_got_ip()) {
            LOG(LOG_LVL_INFO, "No IP, waiting for WiFi...\n");
            OS_MsDelay(1000);
            continue;
        }

        // 获取网络接口（STA 模式）的 IP 信息，包括 IP 地址、子网掩码和网关
        tcpip_ip_info_t ip_info;
        netdev_get_ip_info(NETIF_IDX_STA, &ip_info);
        LOG(LOG_LVL_INFO, "IP: %s, Mask: %s, Gateway: %s\n",
            ip4addr_ntoa(&ip_info.ip), ip4addr_ntoa(&ip_info.netmask), ip4addr_ntoa(&ip_info.gw));

        // 获取 WiFi 信号强度（RSSI，单位 dBm），并打印。
        int8_t rssi;
        wifi_sta_get_rssi(&rssi);
        LOG(LOG_LVL_INFO, "WiFi RSSI: %d dBm\n", rssi);

        // 当网络连接正常时，进入内层循环处理 socket 连接和数据通信。
        while (netdev_got_ip()) {
            if (sockfd < 0) { // 未创建，则创建 socket 句柄
                sockfd = lwip_socket(AF_INET, SOCK_STREAM, 0);
                if (sockfd < 0) { // 失败延迟 2s 重试
                    LOG(LOG_LVL_ERROR, "Socket create error: %d\n", errno);
                    OS_MsDelay(2000);
                    continue;
                }
                LOG(LOG_LVL_INFO, "Socket create ID=%d\n", sockfd);

                // 设置 socket 为非阻塞模式（FIONBIO）失败则关闭重试
                int flags = 1;
                if (lwip_ioctl(sockfd, FIONBIO, &flags) < 0) {
                    LOG(LOG_LVL_ERROR, "socket ioctl error: %d\n", errno);
                    lwip_close(sockfd);
                    sockfd = -1;
                    OS_MsDelay(2000);
                    continue;
                }

                // 配置服务器地址
                memset(&server_addr, 0, sizeof(server_addr));
                server_addr.sin_family = AF_INET;
                server_addr.sin_port = lwip_htons(8080);
                server_addr.sin_addr.s_addr = inet_addr("192.168.2.27");
                LOG(LOG_LVL_INFO, "Connecting to 192.168.2.27:8080...\n");

                // 连接到指定 IP 和 端口，非阻塞失败就关闭 socket 重试
                int connect_result = lwip_connect(sockfd, (struct sockaddr *)&server_addr, sizeof(server_addr));
                if (connect_result < 0 && errno != EINPROGRESS) {
                    LOG(LOG_LVL_ERROR, "lwip_connect failed: %d\n", errno);
                    lwip_close(sockfd);
                    sockfd = -1;
                    OS_MsDelay(2000);
                    continue;
                }

                // 检查连接结果
                fd_set writefds, exceptfds;
                struct timeval tv;
                tv.tv_sec = 10;
                tv.tv_usec = 0;
                FD_ZERO(&writefds);
                FD_ZERO(&exceptfds);
                FD_SET(sockfd, &writefds);
                FD_SET(sockfd, &exceptfds);
                int select_result = lwip_select(sockfd + 1, NULL, &writefds, &exceptfds, &tv);
                if (select_result <= 0 || FD_ISSET(sockfd, &exceptfds)) {
                    LOG(LOG_LVL_ERROR, "Connect timed out or failed: %d\n", errno);
                    lwip_close(sockfd);
                    sockfd = -1;
                    OS_MsDelay(2000);
                    continue;
                }

                // 检查错误状态
                int so_error = 0;
                socklen_t len = sizeof(so_error);
                if (lwip_getsockopt(sockfd, SOL_SOCKET, SO_ERROR, &so_error, &len) < 0 || so_error != 0) {
                    LOG(LOG_LVL_ERROR, "Connect failed with error: %d\n", so_error);
                    lwip_close(sockfd);
                    sockfd = -1;
                    OS_MsDelay(2000);
                    continue;
                }

                // 设置接收超时
                LOG(LOG_LVL_INFO, "Connected to 192.168.2.27:8080\n");
                tv.tv_sec = timeout_ms / 1000;
                tv.tv_usec = (timeout_ms % 1000) * 1000;
                if (lwip_setsockopt(sockfd, SOL_SOCKET, SO_RCVTIMEO, &tv, sizeof(tv)) < 0) {
                    LOG(LOG_LVL_ERROR, "setsockopt SO_RCVTIMEO failed: %d\n", errno);
                }

                // 重置状态
                state = STATE_IDLE;
                has_partial = 0;
                temp_pos = 0;
                data_type = 0;
                total_written = 0;
                data_sum_size = 0;
                is_get_sum_size = 0;
                last_data_time = 0;
            }

			// socket 和 WiFi 都正常时进入循环
            while (sockfd >= 0 && netdev_got_ip()) {
                switch (state) {
                    case STATE_IDLE: { // 接收 3 字节的开始信号。
                        uint8_t response[3];
                        int len = lwip_recv(sockfd, response, sizeof(response), 0);
                        if (len < 0) {
                            // 无数据时候就 break
                            if (errno == EAGAIN || errno == ETIMEDOUT) {
                                OS_MsDelay(100);
                                break;
                            }
                            // 说明错误了
                            LOG(LOG_LVL_ERROR, "STATE_IDLE len < 0: %d\n", errno);
                            lwip_close(sockfd);
                            sockfd = -1;
                            break;
                        } else if (len == 0) { // 0 表示对方关闭了连接
                            LOG(LOG_LVL_INFO, "Server closed connection\n");
                            lwip_close(sockfd);
                            sockfd = -1;
                            break;
                        }

                        // 检查接收到的开始信号是否为 0xAA 0x01 0xFF
                        if (len == 3 && response[0] == 0xAA && response[1] == 0x01 && response[2] == 0xFF) {
                            LOG(LOG_LVL_INFO, "recv start...\n");
                            send_ACK(sockfd, 0xAA);
                            state = STATE_TYPE;
                        } else {
                            LOG(LOG_LVL_ERROR, "recv start error: %02X %02X %02X\n", response[0], response[1], response[2]);
                            send_ACK(sockfd, 0xEE);
                        }
                        break;
                    }

                    case STATE_TYPE: { // 调用 receive_data 接收数据类型。
                        int ret = receive_data(sockfd, &has_partial, temp_buffer, &temp_pos, &data_type, &total_written);
                        // -1 或 -2：socket 错误或连接关闭，关闭 socket。
                        if (ret == -1 || ret == -2) {
                            LOG(LOG_LVL_INFO, "STATE_TYPE(sockfd)...\n");
                            lwip_close(sockfd);
                            sockfd = -1;
                            break;
                        } else if (ret == -3) { // -3：收到结束信号，切换回 STATE_IDLE
                            LOG(LOG_LVL_ERROR, "Unexpected end signal in STATE_TYPE\n");
                            state = STATE_IDLE;
                            break;
                        }

                        // 如果数据类型为 0x11（打印）或 0x12（音频），切换到对应状态并清空 data_type
                        if (data_type == 0x11 || data_type == 0x12) {
                            state = (data_type == 0x11) ? STATE_PRINT : STATE_AUDIO;
                            data_type = 0;// 清空数据类型
                        }
                        break;
                    }

                    // 打印逻辑
                    case STATE_PRINT: {
                        if (!is_get_sum_size) { // 获取打印数据总大小
                            int ret = receive_sum_size(sockfd, &data_sum_size);
                            if (ret == -1) {
                                LOG(LOG_LVL_ERROR, "receive_sum_size error\n");
                                lwip_close(sockfd);
                                sockfd = -1;
                                break;
                            }
                            if (ret == 1) {
                                is_get_sum_size = 1;
                                total_written = 0;
                                last_data_time = OS_GetTicks();
                                LOG(LOG_LVL_INFO, "STATE_PRINT sum size: %u bytes\n", data_sum_size);
                            }
                        } else {
                            int ret = receive_data(sockfd, &has_partial, temp_buffer, &temp_pos, &data_type, &total_written);
                            if (ret == -1) { // socket 错误，关闭 socket。
                                LOG(LOG_LVL_INFO, "STATE_PRINT(sockfd)...\n");
                                lwip_close(sockfd);
                                sockfd = -1;
                                break;
                            } else if (ret == -2) { // 服务器关闭连接，检查数据完整性后关闭 socket
                                LOG(LOG_LVL_INFO, "Server closed connection\n");
                                if (total_written < data_sum_size) {
                                    LOG(LOG_LVL_ERROR, "Incomplete print data: received %u of %u bytes\n", total_written, data_sum_size);
                                }
                                lwip_close(sockfd);
                                sockfd = -1;
                                is_get_sum_size = 0;
                                total_written = 0;
                                print_write_pos = 0;
                                print_read_pos = 0;
                                state = STATE_IDLE;
                                break;
                            } else if (ret == -3) { // 收到结束信号，检查完整性后切换回 STATE_IDLE
                                if (total_written < data_sum_size) {
                                    LOG(LOG_LVL_ERROR, "print data not wz: received %u of %u bytes\n", total_written, data_sum_size);
                                }
                                is_get_sum_size = 0;
                                total_written = 0;
                                print_write_pos = 0;
                                print_read_pos = 0;
                                state = STATE_IDLE;
                                break;
                            }else if (ret == 1) {
                                // 结束信号后紧跟开始信号
                                LOG(LOG_LVL_INFO, "New session started after end signal\n");
                                total_written = 0;
                                rx_write_pos = 0;
                                rx_read_pos = 0;
                                state = STATE_TYPE; // 切换到类型状态处理新数据
                                break;
                            }
							// 设置超时接收
                            last_data_time = OS_GetTicks(); // 获取当前时间戳
                            // 超时 5s,重置接收状态和缓冲区
                            if (OS_GetTicks() - last_data_time > pdMS_TO_TICKS(5000)) {
                                LOG(LOG_LVL_ERROR, "Timeout waiting for print data\n");
                                lwip_close(sockfd);
                                sockfd = -1;
                                is_get_sum_size = 0;
                                total_written = 0;
                                print_write_pos = 0;
                                print_read_pos = 0;
                                state = STATE_IDLE;
                                break;
                            }
							// 打印接收进度。
                            LOG(LOG_LVL_INFO, "Received %u of %u bytes\n", total_written, data_sum_size);
                        }
                        break;
                    }

                    case STATE_AUDIO: {
                        int ret = receive_data(sockfd, &has_partial, temp_buffer, &temp_pos, &data_type, &total_written);
                        if (ret == -1) {
                            LOG(LOG_LVL_INFO, "lwip_close(sockfd)...\n");
                            lwip_close(sockfd);
                            sockfd = -1;
                            break;
                        } else if (ret == -2) {
                            LOG(LOG_LVL_INFO, "Server closed connection\n");
                            lwip_close(sockfd);
                            sockfd = -1;
                            total_written = 0;
                            rx_write_pos = 0;
                            rx_read_pos = 0;
                            state = STATE_IDLE;
                            break;
                        } else if (ret == -3) {
                            total_written = 0;
                            rx_write_pos = 0;
                            rx_read_pos = 0;
                            state = STATE_IDLE;
                            break;
                        }else if (ret == 1) {
                            // 结束信号后紧跟开始信号
                            LOG(LOG_LVL_INFO, "New session started after end signal\n");
                            total_written = 0;
                            rx_write_pos = 0;
                            rx_read_pos = 0;
                            state = STATE_TYPE; // 切换到类型状态处理新数据
                            break;
                        }

                        last_data_time = OS_GetTicks();
                        if (OS_GetTicks() - last_data_time > pdMS_TO_TICKS(5000)) {
                            LOG(LOG_LVL_ERROR, "Timeout waiting for audio data\n");
                            lwip_close(sockfd);
                            sockfd = -1;
                            total_written = 0;
                            rx_write_pos = 0;
                            rx_read_pos = 0;
                            state = STATE_IDLE;
                            break;
                        }

                        // 从音频发送缓冲区（PCMBuffer_tx）读取数据，构造数据包，并通过 TCP socket 发送给服务器。
                        // 获取信号量
                        if (xSemaphoreTake(tx_data_ready_sem, pdMS_TO_TICKS(100)) == pdTRUE) {
                            uint16_t data_length = 0; // 发送的数据长度
                            int16_t data[MAX_DATA_PER_PACKET / 2]; // 存储从缓冲区读取的音频样本。
                            taskENTER_CRITICAL();
                            // 计算 PCMBuffer_tx 中可用的样本数
                            uint32_t available = (tx_write_pos >= tx_read_pos) ? (tx_write_pos - tx_read_pos) : (RING_BUFFER_SIZE - tx_read_pos + tx_write_pos);
                            // SEND_THRESHOLD 预定义的阈值，避免频繁发送
                            if (available >= SEND_THRESHOLD / 2) {
                                data_length = (available > MAX_DATA_PER_PACKET / 2) ? (MAX_DATA_PER_PACKET / 2) : available;
                                // 从 PCMBuffer_tx 中读取 data_length 个样本
                                read_circular_buffer(PCMBuffer_tx, (uint32_t *)&tx_read_pos, (uint32_t *)&tx_write_pos, RING_BUFFER_SIZE, data, data_length, sizeof(int16_t));
                            }
                            taskEXIT_CRITICAL();

                            // 构造并发送数据包
                            if (data_length > 0) {
                                uint8_t send_buffer[7 + MAX_DATA_PER_PACKET];
                                send_buffer[0] = 0xAA;
                                send_buffer[1] = 0x12;
                                send_buffer[2] = (data_length * 2 >> 8) & 0xFF;
                                send_buffer[3] = (data_length * 2) & 0xFF;
                                memcpy(&send_buffer[4], data, data_length * 2);
                                uint16_t crc = calculate_crc16((uint8_t *)data, data_length * 2);
                                send_buffer[4 + data_length * 2] = (crc >> 8) & 0xFF;
                                send_buffer[5 + data_length * 2] = crc & 0xFF;
                                send_buffer[6 + data_length * 2] = 0xFF;

                                int sent = lwip_send(sockfd, send_buffer, 7 + data_length * 2, 0);
                                if (sent != 7 + data_length * 2) {
                                    LOG(LOG_LVL_ERROR, "Send data failed: expected %d, sent %d\n", 7 + data_length * 2, sent);
                                    lwip_close(sockfd);
                                    sockfd = -1;
                                    break;
                                } else {
                                    LOG(LOG_LVL_INFO, "Sent %d bytes (data length: %u)\n", sent, data_length * 2);
                                }
                            }
                        }
                        break;
                    }
                }
            }

            if (sockfd < 0) {
                LOG(LOG_LVL_ERROR, "Socket disconnect, retrying...\n");
                OS_MsDelay(2000);
            }
        }
        LOG(LOG_LVL_ERROR, "WiFi disconnected, waiting...\n");
        OS_MsDelay(2000);
    }
}

void audio_task(void *param) {
    pwm_init(40000, 0, PWM_CHA_0, GPIO_B, GPIO_PIN_5);
    pwm_init(40000, 0, PWM_CHA_1, GPIO_B, GPIO_PIN_6);
    pwm_start(PWM_CHA_0);
    pwm_start(PWM_CHA_1);

    bool speaker_on = false;
    int16_t samples[192]; // 每次处理 192 个样本，与 receive_data 一致
    const uint32_t samples_per_batch = 192;

    while (1) {
        LOG(LOG_LVL_INFO, "Audio task sem, count=%lu\n", uxSemaphoreGetCount(rx_data_ready_sem));
        if (xSemaphoreTake(rx_data_ready_sem, pdMS_TO_TICKS(10)) == pdTRUE) {
            taskENTER_CRITICAL();
            uint32_t available = (rx_write_pos >= rx_read_pos) ?
                                 (rx_write_pos - rx_read_pos) :
                                 (RING_BUFFER_SIZE - rx_read_pos + rx_write_pos);
            LOG(LOG_LVL_INFO, "Audio task: available=%u, write=%u, read=%u\n",
                available, rx_write_pos, rx_read_pos);
            if (available >= samples_per_batch) {
                if (!speaker_on) {
                    pwm_start(PWM_CHA_0);
                    pwm_start(PWM_CHA_1);
                    speaker_on = true;
                }
                if (read_circular_buffer(PCMBuffer_rx, (uint32_t *)&rx_read_pos,
                                        (uint32_t *)&rx_write_pos, RING_BUFFER_SIZE,
                                        samples, samples_per_batch, sizeof(int16_t)) == 0) {
                    LOG(LOG_LVL_INFO, "Audio task read %u samples, new read=%u\n",
                        samples_per_batch, rx_read_pos);
                    taskEXIT_CRITICAL();
                    // // 播放音频样本
                    for (uint32_t i = 0; i < samples_per_batch; i++) {
                        uint16_t pwm_value = (samples[i] + 32768) >> 4;
                        float duty = (pwm_value / 4095.0f) * 100.0f;
                        pwm_set_duty(PWM_CHA_0, duty);
                        vTaskDelay(pdMS_TO_TICKS(1000 / 16000));
                    }
                } else {
                    LOG(LOG_LVL_ERROR, "Read from PCMBuffer_rx failed\n");
                    taskEXIT_CRITICAL();
                }
            } else {
                taskEXIT_CRITICAL();
            }
        } else {
            LOG(LOG_LVL_INFO, "Audio task timeout, no data ready\n");
            if (speaker_on) {
                pwm_stop(PWM_CHA_0);
                pwm_stop(PWM_CHA_1);
                speaker_on = false;
                LOG(LOG_LVL_INFO, "Speaker turned off due to no data\n");
            }
        }
        vTaskDelay(pdMS_TO_TICKS(10));
    }
}

// 打印任务
void print_task(void *param) {
    while (1) {
        if (xSemaphoreTake(print_data_ready_sem, portMAX_DELAY) == pdTRUE) {
            uint8_t data[SUM_BUFFER_SIZE];
            taskENTER_CRITICAL();
            uint32_t available = (print_write_pos >= print_read_pos) ?
                                 (print_write_pos - print_read_pos) :
                                 (SUM_BUFFER_SIZE - print_read_pos + print_write_pos);
            if (available > 0) {
                read_circular_buffer(print_buffer, (uint32_t *)&print_read_pos,
                                    (uint32_t *)&print_write_pos, SUM_BUFFER_SIZE,
                                    data, available, sizeof(uint8_t));
                LOG(LOG_LVL_INFO, "Print task processed %u bytes\n", available);
                xSemaphoreGive(print_data_ready_sem); // ?????
            }
            taskEXIT_CRITICAL();
        }
    }
}

void usr_app_task_entry(void *params){
    rx_data_ready_sem = xSemaphoreCreateCounting(65535, 0);;
    tx_data_ready_sem = xSemaphoreCreateCounting(35535, 0);;
    print_data_ready_sem = xSemaphoreCreateCounting(35535, 0);;
    if (rx_data_ready_sem == NULL || tx_data_ready_sem == NULL ||
        print_data_ready_sem == NULL) {
        LOG(LOG_LVL_ERROR, "Semaphore creation failed!\n");
        //return -1;
    }

	// 创建 socket Task
	if (OS_OK != OS_ThreadCreate(&g_socket_thread, "SocketTask", socket_task_entry, NULL, OS_PRIORITY_BELOW_NORMAL, USR_APP_TASK_STACK_SIZE)) {
        LOG(LOG_LVL_ERROR, "SocketTask failed!\n");
		LN_ASSERT(1);
    }
	// audio task
	if (OS_OK != OS_ThreadCreate(&g_audio_thread, "AudioTask", audio_task, NULL, OS_PRIORITY_BELOW_NORMAL, USR_APP_TASK_STACK_SIZE)) {
        LOG(LOG_LVL_ERROR, "AudioTask failed!\n");
		LN_ASSERT(1);
    }

    //	// print task
//	if (OS_OK != OS_ThreadCreate(&g_print_thread;, "PrintTask", print_task, NULL, OS_PRIORITY_BELOW_NORMAL, USR_APP_TASK_STACK_SIZE)) {
//        LN_ASSERT(1);
//    }

}

456

static void socket_task(void *params) {

    LN_UNUSED(params); // ???????????????
    struct sockaddr_in server_addr; // ?? IP ????
    int timeout_ms = 5000; // ??????,???? 5s
    int sockfd = -1; // socket ?? -1 ???
    int has_partial = 0; // ???,???????????????
    // ?????,??????,????? 0?
    uint8_t temp_buffer[TEMP_BUFFER_SIZE] = {0};
    uint32_t temp_pos = 0; // ????????????
    uint8_t data_type = 0; // ???????
    uint32_t total_written = 0; // ????????(???????)
    State_t state = STATE_IDLE; // ?????,???????
    uint32_t data_sum_size = 0; // ????????
    uint8_t is_get_sum_size = 0; // ???,???????????????
    // ???????????,??????,?????????????
    static uint32_t last_data_time = 0;

    while (1) {
        // ?? MUC ????? IP ??(WiFi ????)
        if (!netdev_got_ip()) {
            LOG(LOG_LVL_INFO, "No IP, waiting for WiFi...\n");
            OS_MsDelay(1000);
            continue;
        }

        // ??????(STA ??)? IP ??,?? IP ??????????
        tcpip_ip_info_t ip_info;
        netdev_get_ip_info(NETIF_IDX_STA, &ip_info);
        LOG(LOG_LVL_INFO, "IP: %s, Mask: %s, Gateway: %s\n",
            ip4addr_ntoa(&ip_info.ip), ip4addr_ntoa(&ip_info.netmask), ip4addr_ntoa(&ip_info.gw));

        // ?? WiFi ????(RSSI,?? dBm),????
        int8_t rssi;
        wifi_sta_get_rssi(&rssi);
        LOG(LOG_LVL_INFO, "WiFi RSSI: %d dBm\n", rssi);

        // ????????,???????? socket ????????
        while (netdev_got_ip()) {
            if (sockfd < 0) { // ???,??? socket ??
                sockfd = lwip_socket(AF_INET, SOCK_STREAM, 0);
                if (sockfd < 0) { // ???? 2s ??
                    LOG(LOG_LVL_ERROR, "Socket create error: %d\n", errno);
                    OS_MsDelay(2000);
                    continue;
                }
                LOG(LOG_LVL_INFO, "Socket create ID=%d\n", sockfd);

                // ?? socket ??????(FIONBIO)???????
                int flags = 1;
                if (lwip_ioctl(sockfd, FIONBIO, &flags) < 0) {
                    LOG(LOG_LVL_ERROR, "socket ioctl error: %d\n", errno);
                    lwip_close(sockfd);
                    sockfd = -1;
                    OS_MsDelay(2000);
                    continue;
                }

                // ???????
                memset(&server_addr, 0, sizeof(server_addr));
                server_addr.sin_family = AF_INET;
                server_addr.sin_port = lwip_htons(8080);
                server_addr.sin_addr.s_addr = inet_addr("192.168.2.27");
                LOG(LOG_LVL_INFO, "Connecting to 192.168.2.27:8080...\n");

                // ????? IP ? ??,???????? socket ??
                int connect_result = lwip_connect(sockfd, (struct sockaddr *)&server_addr, sizeof(server_addr));
                if (connect_result < 0 && errno != EINPROGRESS) {
                    LOG(LOG_LVL_ERROR, "lwip_connect failed: %d\n", errno);
                    lwip_close(sockfd);
                    sockfd = -1;
                    OS_MsDelay(2000);
                    continue;
                }

                // ??????
                fd_set writefds, exceptfds;
                struct timeval tv;
                tv.tv_sec = 10;
                tv.tv_usec = 0;
                FD_ZERO(&writefds);
                FD_ZERO(&exceptfds);
                FD_SET(sockfd, &writefds);
                FD_SET(sockfd, &exceptfds);
                int select_result = lwip_select(sockfd + 1, NULL, &writefds, &exceptfds, &tv);
                if (select_result <= 0 || FD_ISSET(sockfd, &exceptfds)) {
                    LOG(LOG_LVL_ERROR, "Connect timed out or failed: %d\n", errno);
                    lwip_close(sockfd);
                    sockfd = -1;
                    OS_MsDelay(2000);
                    continue;
                }

                // ??????
                int so_error = 0;
                socklen_t len = sizeof(so_error);
                if (lwip_getsockopt(sockfd, SOL_SOCKET, SO_ERROR, &so_error, &len) < 0 || so_error != 0) {
                    LOG(LOG_LVL_ERROR, "Connect failed with error: %d\n", so_error);
                    lwip_close(sockfd);
                    sockfd = -1;
                    OS_MsDelay(2000);
                    continue;
                }

                // ??????
                LOG(LOG_LVL_INFO, "Connected to 192.168.2.27:8080\n");
                tv.tv_sec = timeout_ms / 1000;
                tv.tv_usec = (timeout_ms % 1000) * 1000;
                if (lwip_setsockopt(sockfd, SOL_SOCKET, SO_RCVTIMEO, &tv, sizeof(tv)) < 0) {
                    LOG(LOG_LVL_ERROR, "setsockopt SO_RCVTIMEO failed: %d\n", errno);
                }

                // ????
                state = STATE_IDLE;
                has_partial = 0;
                temp_pos = 0;
                data_type = 0;
                total_written = 0;
                data_sum_size = 0;
                is_get_sum_size = 0;
                last_data_time = 0;
            }

			// socket ? WiFi ????????
            while (sockfd >= 0 && netdev_got_ip()) {
                switch (state) {
                    case STATE_IDLE: { // ?? 3 ????????
                        uint8_t response[3];
                        int len = lwip_recv(sockfd, response, sizeof(response), 0);
                        if (len < 0) {
                            // ?????? break
                            if (errno == EAGAIN || errno == ETIMEDOUT) {
                                OS_MsDelay(100);
                                break;
                            }
                            // ?????
                            LOG(LOG_LVL_ERROR, "STATE_IDLE len < 0: %d\n", errno);
                            lwip_close(sockfd);
                            sockfd = -1;
                            break;
                        } else if (len == 0) { // 0 ?????????
                            LOG(LOG_LVL_INFO, "Server closed connection\n");
                            lwip_close(sockfd);
                            sockfd = -1;
                            break;
                        }

                        // ????????????? 0xAA 0x01 0xFF
                        if (len == 3 && response[0] == 0xAA && response[1] == 0x01 && response[2] == 0xFF) {
                            LOG(LOG_LVL_INFO, "recv start...\n");
                            send_ACK(sockfd, 0xAA);
                            state = STATE_TYPE;
                        } else {
                            LOG(LOG_LVL_ERROR, "recv start error: %02X %02X %02X\n", response[0], response[1], response[2]);
                            send_ACK(sockfd, 0xEE);
                        }
                        break;
                    }

                    case STATE_TYPE: { // ?? receive_data ???????
                        int ret = receive_data(sockfd, &has_partial, temp_buffer, &temp_pos, &data_type, &total_written);
                        // -1 ? -2:socket ???????,?? socket?
                        if (ret == -1 || ret == -2) {
                            LOG(LOG_LVL_INFO, "STATE_TYPE(sockfd)...\n");
                            lwip_close(sockfd);
                            sockfd = -1;
                            break;
                        } else if (ret == -3) { // -3:??????,??? STATE_IDLE
                            LOG(LOG_LVL_ERROR, "Unexpected end signal in STATE_TYPE\n");
                            state = STATE_IDLE;
                            break;
                        }

                        // ??????? 0x11(??)? 0x12(??),?????????? data_type
                        if (data_type == 0x11 || data_type == 0x12) {
                            state = (data_type == 0x11) ? STATE_PRINT : STATE_AUDIO;
                            data_type = 0;// ??????
                        }
                        break;
                    }

                    // ????
                    case STATE_PRINT: {
                        if (!is_get_sum_size) { // ?????????
                            int ret = receive_sum_size(sockfd, &data_sum_size);
                            if (ret == -1) {
                                LOG(LOG_LVL_ERROR, "receive_sum_size error\n");
                                lwip_close(sockfd);
                                sockfd = -1;
                                break;
                            }
                            if (ret == 1) {
                                is_get_sum_size = 1;
                                total_written = 0;
                                last_data_time = OS_GetTicks();
                                LOG(LOG_LVL_INFO, "STATE_PRINT sum size: %u bytes\n", data_sum_size);
                            }
                        } else {
                            int ret = receive_data(sockfd, &has_partial, temp_buffer, &temp_pos, &data_type, &total_written);
                            if (ret == -1) { // socket ??,?? socket?
                                LOG(LOG_LVL_INFO, "STATE_PRINT(sockfd)...\n");
                                lwip_close(sockfd);
                                sockfd = -1;
                                break;
                            } else if (ret == -2) { // ???????,?????????? socket
                                LOG(LOG_LVL_INFO, "Server closed connection\n");
                                if (total_written < data_sum_size) {
                                    LOG(LOG_LVL_ERROR, "Incomplete print data: received %u of %u bytes\n", total_written, data_sum_size);
                                }
                                lwip_close(sockfd);
                                sockfd = -1;
                                is_get_sum_size = 0;
                                total_written = 0;
                                print_write_pos = 0;
                                print_read_pos = 0;
                                state = STATE_IDLE;
                                break;
                            } else if (ret == -3) { // ??????,????????? STATE_IDLE
                                if (total_written < data_sum_size) {
                                    LOG(LOG_LVL_ERROR, "print data not wz: received %u of %u bytes\n", total_written, data_sum_size);
                                }
                                is_get_sum_size = 0;
                                total_written = 0;
                                print_write_pos = 0;
                                print_read_pos = 0;
                                state = STATE_IDLE;
                                break;
                            }else if (ret == 1) {
                                // ???????????
                                LOG(LOG_LVL_INFO, "New session started after end signal\n");
                                total_written = 0;
                                rx_write_pos = 0;
                                rx_read_pos = 0;
                                state = STATE_TYPE; // ????????????
                                break;
                            }
							// ??????
                            last_data_time = OS_GetTicks(); // ???????
                            // ?? 5s,??????????
                            if (OS_GetTicks() - last_data_time > pdMS_TO_TICKS(5000)) {
                                LOG(LOG_LVL_ERROR, "Timeout waiting for print data\n");
                                lwip_close(sockfd);
                                sockfd = -1;
                                is_get_sum_size = 0;
                                total_written = 0;
                                print_write_pos = 0;
                                print_read_pos = 0;
                                state = STATE_IDLE;
                                break;
                            }
							// ???????
                            LOG(LOG_LVL_INFO, "Received %u of %u bytes\n", total_written, data_sum_size);
                        }
                        break;
                    }

                    case STATE_AUDIO: {
                        int ret = receive_data(sockfd, &has_partial, temp_buffer, &temp_pos, &data_type, &total_written);
                        if (ret == -1) {
                            LOG(LOG_LVL_INFO, "lwip_close(sockfd)...\n");
                            lwip_close(sockfd);
                            sockfd = -1;
                            break;
                        } else if (ret == -2) {
                            LOG(LOG_LVL_INFO, "Server closed connection\n");
                            lwip_close(sockfd);
                            sockfd = -1;
                            total_written = 0;
                            rx_write_pos = 0;
                            rx_read_pos = 0;
                            state = STATE_IDLE;
                            break;
                        } else if (ret == -3) {
                            total_written = 0;
                            rx_write_pos = 0;
                            rx_read_pos = 0;
                            state = STATE_IDLE;
                            break;
                        }else if (ret == 1) {
                            // ???????????
                            LOG(LOG_LVL_INFO, "New session started after end signal\n");
                            total_written = 0;
                            rx_write_pos = 0;
                            rx_read_pos = 0;
                            state = STATE_TYPE; // ????????????
                            break;
                        }

                        last_data_time = OS_GetTicks();
                        if (OS_GetTicks() - last_data_time > pdMS_TO_TICKS(5000)) {
                            LOG(LOG_LVL_ERROR, "Timeout waiting for audio data\n");
                            lwip_close(sockfd);
                            sockfd = -1;
                            total_written = 0;
                            rx_write_pos = 0;
                            rx_read_pos = 0;
                            state = STATE_IDLE;
                            break;
                        }

                        // ????????(PCMBuffer_tx)????,?????,??? TCP socket ???????
                        // ?????
                        if (xSemaphoreTake(tx_data_ready_sem, pdMS_TO_TICKS(100)) == pdTRUE) {
                            uint16_t data_length = 0; // ???????
                            int16_t data[MAX_DATA_PER_PACKET / 2]; // ??????????????
                            taskENTER_CRITICAL();
                            // ?? PCMBuffer_tx ???????
                            uint32_t available = (tx_write_pos >= tx_read_pos) ? (tx_write_pos - tx_read_pos) : (RING_BUFFER_SIZE - tx_read_pos + tx_write_pos);
                            // SEND_THRESHOLD ??????,??????
                            if (available >= SEND_THRESHOLD / 2) {
                                data_length = (available > MAX_DATA_PER_PACKET / 2) ? (MAX_DATA_PER_PACKET / 2) : available;
                                // ? PCMBuffer_tx ??? data_length ???
                                read_circular_buffer(PCMBuffer_tx, (uint32_t *)&tx_read_pos, (uint32_t *)&tx_write_pos, RING_BUFFER_SIZE, data, data_length, sizeof(int16_t));
                            }
                            taskEXIT_CRITICAL();

                            // ????????
                            if (data_length > 0) {
                                uint8_t send_buffer[7 + MAX_DATA_PER_PACKET];
                                send_buffer[0] = 0xAA;
                                send_buffer[1] = 0x12;
                                send_buffer[2] = (data_length * 2 >> 8) & 0xFF;
                                send_buffer[3] = (data_length * 2) & 0xFF;
                                memcpy(&send_buffer[4], data, data_length * 2);
                                uint16_t crc = calculate_crc16((uint8_t *)data, data_length * 2);
                                send_buffer[4 + data_length * 2] = (crc >> 8) & 0xFF;
                                send_buffer[5 + data_length * 2] = crc & 0xFF;
                                send_buffer[6 + data_length * 2] = 0xFF;

                                int sent = lwip_send(sockfd, send_buffer, 7 + data_length * 2, 0);
                                if (sent != 7 + data_length * 2) {
                                    LOG(LOG_LVL_ERROR, "Send data failed: expected %d, sent %d\n", 7 + data_length * 2, sent);
                                    lwip_close(sockfd);
                                    sockfd = -1;
                                    break;
                                } else {
                                    LOG(LOG_LVL_INFO, "Sent %d bytes (data length: %u)\n", sent, data_length * 2);
                                }
                            }
                        }
                        break;
                    }
                }
            }

            if (sockfd < 0) {
                LOG(LOG_LVL_ERROR, "Socket disconnect, retrying...\n");
                OS_MsDelay(2000);
            }
        }
        LOG(LOG_LVL_ERROR, "WiFi disconnected, waiting...\n");
        OS_MsDelay(2000);
    }
}
